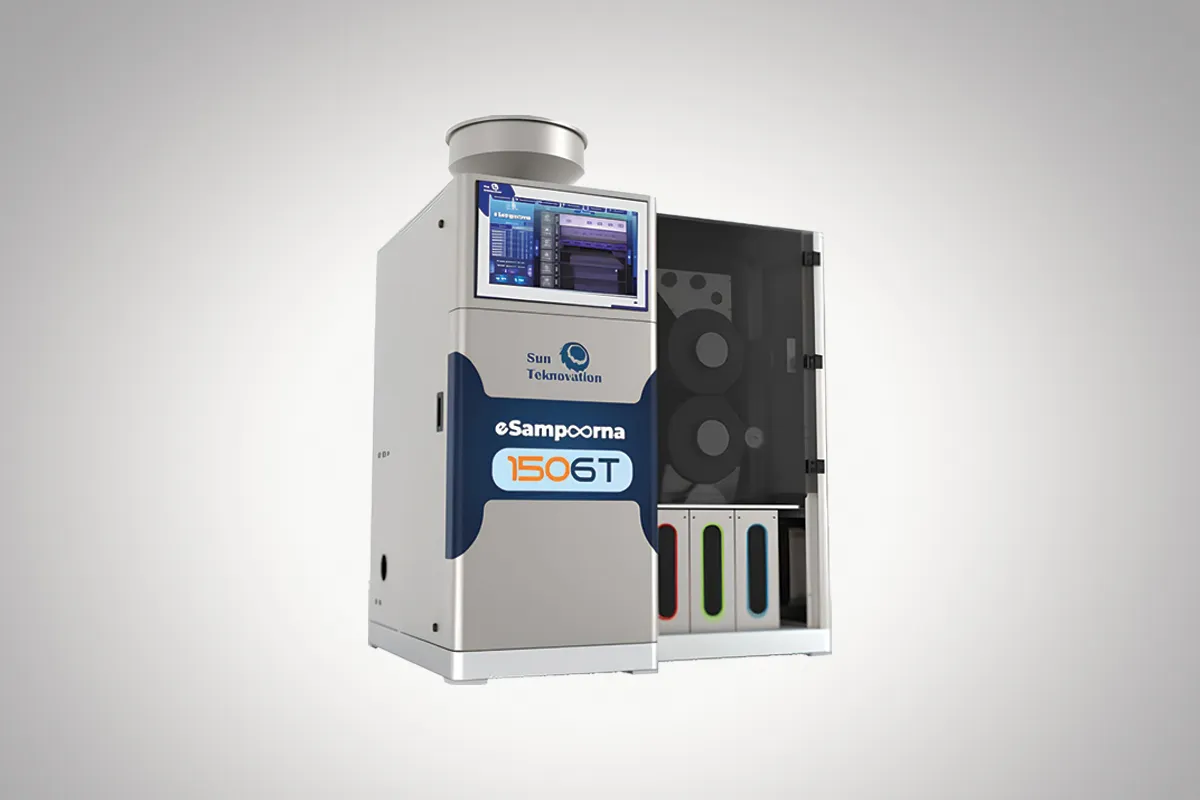

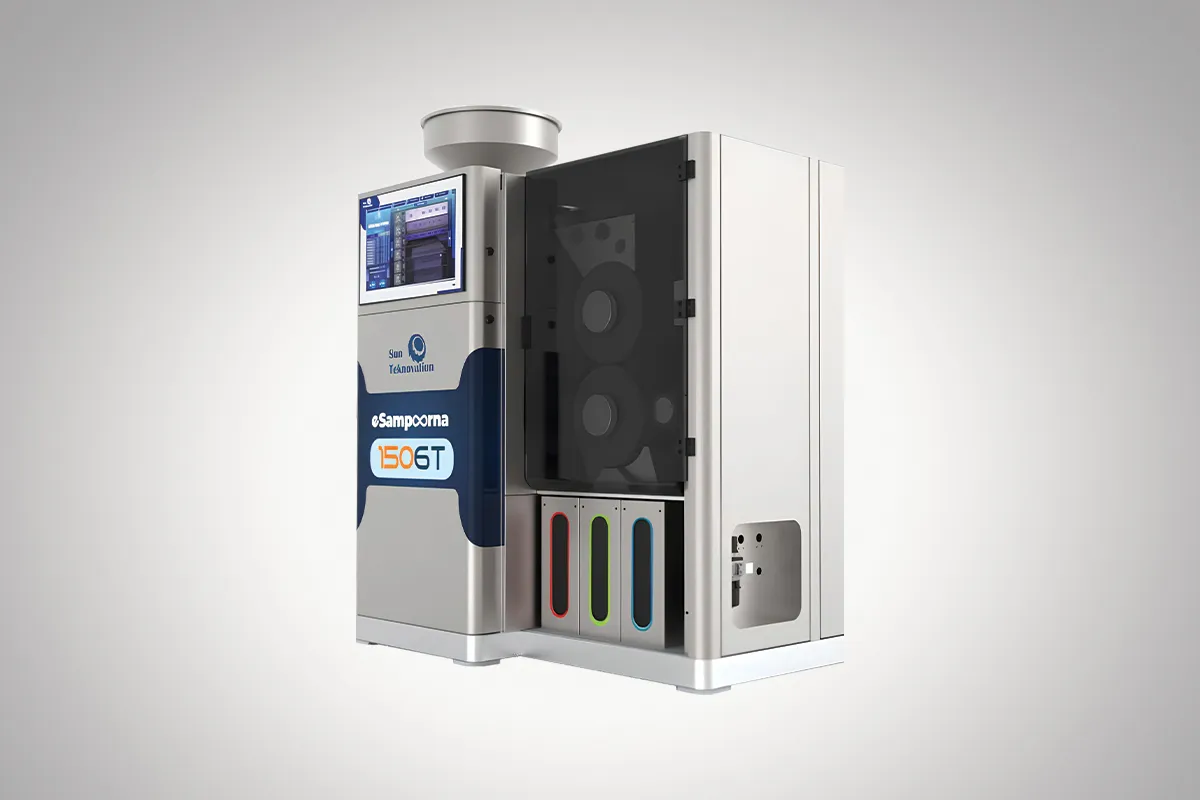

eSampoorna Standalone 360 Deg Inspection System
The product flow in eSapmpoorna starts by feeding of products from the input container to a filling unit. The filling unit fills the products into pockets of an upper inspection cylinder, where the products are held in defined, stable and repeatable position by vacuum. The rotating upper inspection cylinder transfers the products to the first inspection unit, where the top surface of the products is imaged. The products are then transferred to the lower inspection cylinder to the five additional inspection units where all remaining surfaces are imaged.
The acquired images are then analysed and each product is classified as good or defective. The sorting unit actively sorts individual products into bins for good and defective products and verifies if the sorting was performed correctly. The inspection process is monitored and controlled by graphical user interface.
INDICATIVE INSPECTION SPEEDS*
Round Tablets
| Ø (Diameter) in mm | Tablets / Hour |
|---|---|
| 13 - 18 | 80,000 |
| 10 - 12 | 1,60,000 |
| 8 - 9 | 2,60,000 |
| 7 - 5 | 3,20,000 |
| 5 | 4,00,000 |
Oval and Oblong Tablets
| L (Length) in mm | Tablets / Hour |
|---|---|
| > 18 | 60,000 |
| 14 - 18 | 80,000 |
| 11 - 13 | 1,60,000 |
| 8 - 10 | 1,80,000 |
| < 8 | 2,00,000 |
CAPSULE
ROUND TABLET
10 Minute Machine Set Up
- No defects needed for training
- Computer assisted settin rocedure
- Intuitive sensitivity with easy setting
- Feedback on detection erformance and yield
10 Minute Machine Cleaning and Changeover
- Ergonomic tool-free design
- Easy cleaning
- No adjustment of optical system needed
